Long Bay® System

Ceco’s Long Bay® System is custom-engineered to allow for flexibility in architectural design while accommodating structures needing extended areas of open floor space.

Long Bay® System

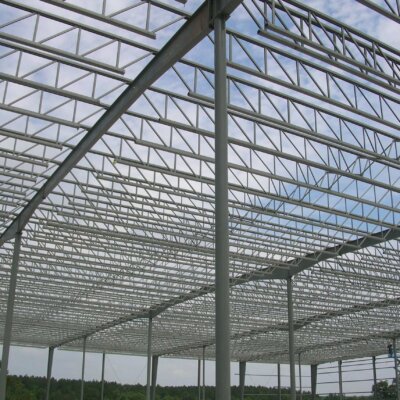

Ceco’s Long Bay System (LBS) utilizes open web truss secondary-framing, delivering roof support and shortening the installation of mechanical and electrical systems. LBS compatibility with multiple wall and roofing systems provides you with amplified flexibility in construction design. The Long Bay System is the perfect solution for manufacturing, warehouse, distribution and large retail applications.

The single-source design, fabrication and schedule control eliminates inconsistencies and interruptions during the entire building design and erection process. LBS requires less bridging – no welding or inspections, reduced footings and a fewer number of interior columns. The result is a substantial overall cost savings and an opportunity of speed to market, typically by two to four weeks.

LBS is offered in bays from 40′ up to 70 feet. LBS is flexible in the design with less bridging that is attached with self-drilling screws, the ability to bolt to the main frame, and is stiffer and lighter than the bar joist. This open web purlin is fabricated of light-gauge cold-rolled steel with a 4″ chord width and 5″ seat depth.

LBS can interface with load-bearing masonry or tilt-wall construction and offers a faster, more precise installation. LBS is easy to handle maneuver and erect with no warp or sweep.



Download our Long Bay® Brochure
