BattenLok® HS Metal Roof Panel

BattenLok® HS is a standing seam panel roof system with a 2″ tall vertical seam and a 55′ maximum length. Designed to minimize oil canning and to comply with industry codes, the BattenLok® HS panels can span up to five feet on purlins or can be used as an architectural panel over solid deck. BattenLok® HS can be used with a variety of concealed fastening clips, fixed or floating, and can be installed as a roof or fascia. It can also be ordered with or without pencil ribs.

Ready to Start?

Find out how Ceco can help build your projects.

Contact Us

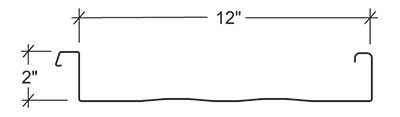

Dimensions: 12″, 16″ wide by 2″ high (other widths available as special order)
Slope: Recommended for roof slopes of 1/2:12 or greater
Panel Attachment: Concealed Fastening System
Gauges: 24, 22
Facings: Smooth or Embossed; with striations or striations and pencil ribs
Finishes: Galvalume Plus®, Signature® 200, Signature® 300
Rib Spacing: N/A
Thickness: N/A
Lengths: Maximum recommended 55′-0″. Longer lengths are available on special order
Reveal: N/A
Fasteners: A choice of concealed fastening clips is available for this panel system, including UL-rated clips. Low and high clips are available, which are fixed or floating. Floating clips accommodate thermal movement.
Usage: Structural roof panel on purlins, architectural panel over solid deck



Fewer exposed fasteners (80% less) than traditional side lap panels

Superior weathertightness and enhanced appearance

Roof runs without end lap panels may be erected from either direction

Facilitates installation

Air infiltration and water penetration tests under ASTM E283 and E331 methods performed on side lap panels

Specifiers prefer minimal air infiltration and water penetration

UL 90

Reduced insurance costs

Panel has striations and embossing available

Minimizes oil canning

Standard factory applied mastic applied to inside of female leg

Ensures watertight fit and facilitates installation

Swaged end laps

Facilitates installation and enhances appearance

Vertical leg

Superior transition to hip, valleys and roof openings

Allows architectural design flexibility

Creates economical weathertight designed buildings

Roof to wall transition

Provides a trimless eave

Tall or short floating clips or fixed clips are available

Allows for better roof expansion and contraction, improves weathertightness and provides for variations in insulation thicknesses

Thermal blocks

Improved energy efficiency

Panels are available in Signature® 200 and 300 Energy Star® paint

25-year finish warranty


Public House Brewing


Builder: H-W Contracting, Bourbon, MO

Location: St. James, MO



Builder: Cal Valley Contractors, Bakersfield, CA

Location: San Luis Obispo, CA
