AVP Metal Wall Panel System

The AVP metal wall panel creates an attractive, smooth shadow line, providing improved aesthetics to the building design with its semi-concealed fasteners. This panel profile with standard pencil ribs, allows for more insulation to be installed behind the panel, providing greater insulating values to meet energy codes and requirements.

Ready to Start?

Find out how Ceco can help build your projects.

Contact Us

Dimensions: 36″ wide by 1 1/8” deep
Slope: N/A
Panel Attachment: Exposed Fastening System
Gauges: 29, 26, 24, 22
Facings: Smooth (standard); Embossed (optional)
Coatings: Galvalume Plus®, Signature® 200, Signature® 300
Rib Spacing: 12” on center
Thickness: N/A
Lengths: Maximum recommended 45’-0”. Longer lengths available on special order
Reveal Options: N/A
Fasteners: Standard coated, CAD plated or zinc-aluminum cast head fastener
Usage: Wall panel, liner panel and façade panel face



Semi-concealed fastener panel

Attractive architectural application

Continuous eave-to-sill until exceeds 40′-0″ length

Eliminating end laps improves appearance and enhances ease of installation.

Signature® 200 series

25-year finish warranty

Signature® 300 option

25-year limited warranty premium paint finish provides ultimate resistance to color changes and chalk.

Optional embossed texture

Embossing the metal reduces glare and the potential for oil-canning.

Fire rating

The panel carries a UL “Class A” fire rating.


radiant-church (1)


Builder: Nett Construction

Location: Bradenburg, KY

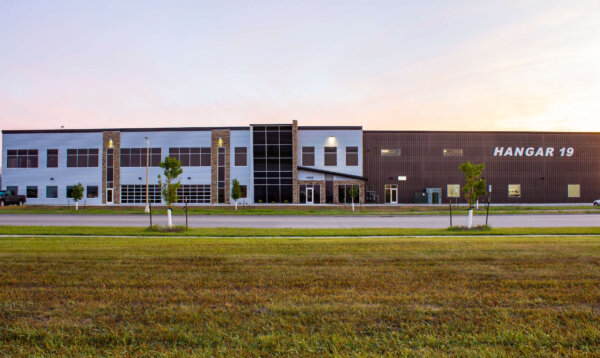

Bravo Hangar_0003 - No WM


Builder: Olaf Anderson Construction, Fargo, ND

Location: Fargo, ND
