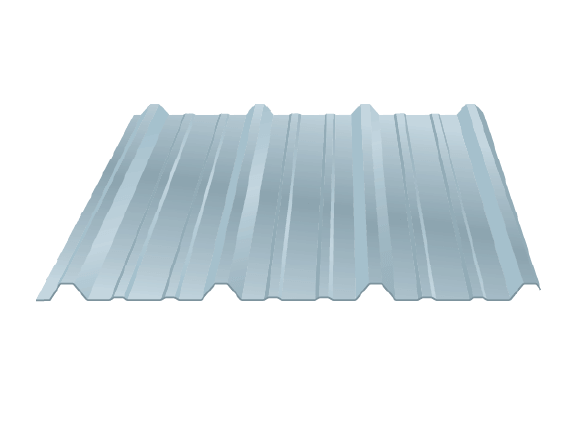

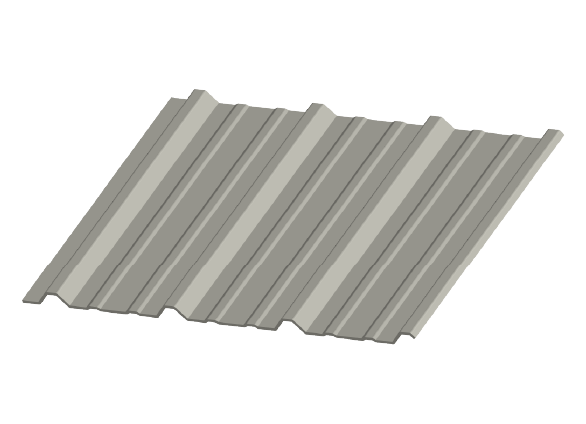

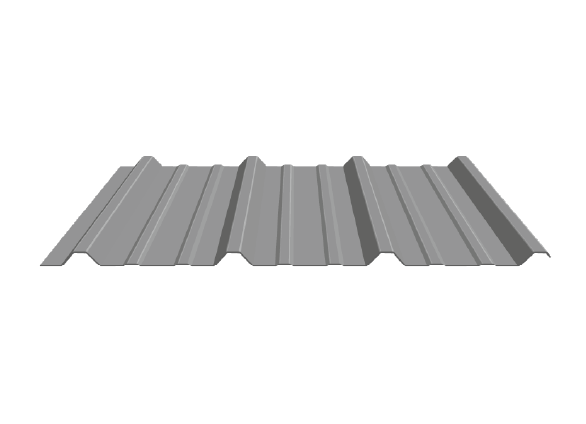

PBR Metal Wall Panel System

The PBR metal panel has deep ribs and exposed fasteners that deliver shape and dimension to any structure. Comparable to the industry-standard R-panel, PBR can be used for both roof and wall applications. The area between the ribs is reinforced, and the panel configuration enhances diaphragm capabilities for purlin stability. The PBR panel has a wind uplift rating and qualifies for UL 90 in multiple construction numbers.

No Job too Large or too Small


From compact facilities like park restrooms to industrial steel buildings that meet stringent code requirements, Ceco can customize the metal building for you. For a custom metal building, find a builder near you or contact Ceco.

Dimensions: 36″ coverage x 1 1/4″ deep
Slope: N/A for wall application
Panel Attachment: Exposed Fastening System
Gauges: 26, 24
Facing: Smooth (standard); Embossed (optional)
Coatings: Galvalume Plus®, Signature® 200, Signature® 300
Rib Spacing: 12″ on center
Thickness: N/A
Lengths: Maximum recommended 45′-0″. Longer lengths available on special order
Reveal Options: N/A
Fasteners: Standard coated, CAD plated or zinc-aluminum cast head fastener
Usage: Roof, wall, liner, fascia and soffit panel applications

Features

Benefits

Reverse rolled profile

The panel can serve as an alternate wall panel by putting the paint finish on the under side.

Purlin bearing leg

An additional leg is rolled on one side of lap rib to facilitate installation

Installation may start at either end

Flexible installation

Economical profile

Cost effective

36″ coverage

Ease of installation

Wind uplift rating

The panel qualifies for UL90 in multiple construction numbers.

Diaphragm action

The panel configuration enhances diaphragm capabilities for purlin stability.

Light transmitting panels

Profile light transmitting panels are available for the PBR panel.

Finish warranty

Used with long-life fasteners this panel has a 25-year warranty.
